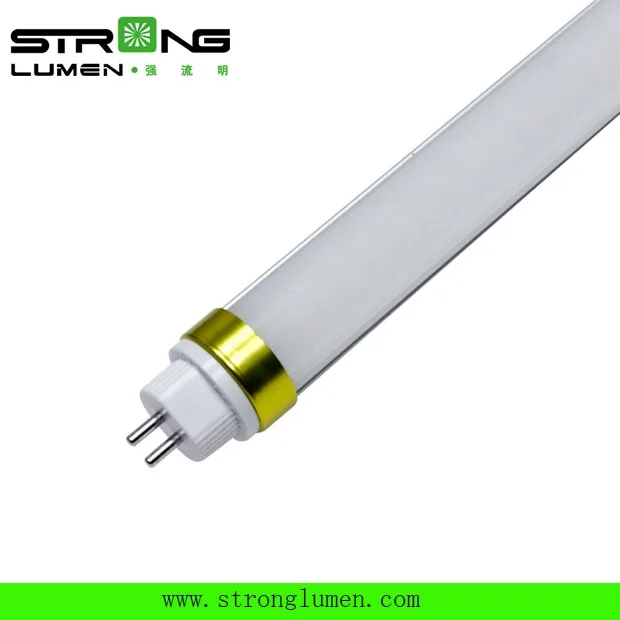

T5 Led Tube inner driver 1500mm 22W 110lm/w 130lm/w 160lm/w TUV CE 1149mm G5 base

FOB Reference Price:Get Latest Price
US $6-11 / Pieces | 20 Piece/Pieces 1 Sample can be made (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Tube Lights
Warranty(Years):
5
Input Voltage(V):
AC85-265V
Lamp Power(W):
20
Lamp Luminous Efficiency(lm/w):
130
CRI (Ra>):
80
Working Temperature(℃):
-20 - 70
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP44
Certification:
BV, CE, FCC, RoHS, SAA, UL
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Stronglumen
Model Number:
T5
Product Name:
T5 Led Tube inner driver 1500mm 22W 110lm/w 130lm/w 160lm/w TUV CE
LED Chip:
SMD2835 Chip
CCT:
WW(2700-3400K)NW(4000-4500k) CW(6000-6500K)
Power Factor:
PF>0.95
Driver:
Internal Constant Current Driver
Cover:
Clear Cover /Frosted Cover
Material:
Alumimum + PC Cover
Base:
G5
Length:
4ft
Beam angle:
140 Degree
LED Light Source:
Epistar SMD2835
Lamp Luminous Flux(lm):
4800
Color Temperature(CCT):
2800-6400K
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
667*23*23mm for 60cm
96*23*23mm for 90cm
126*23*23mm for 120cm
157*23*23mm for 150cm
( 25pcs a carton)
Port
Shenzhen
Lead Time :
Sample order:3~7 working days, formal order:7~12 working days
Specification
Performance Parameters
Product Name
T5 Led Tube inner driver 1500mm 22W 110lm/w 130lm/w 160lm/w TUV CE 1149mm G5 base
Product Type
T5 LED Tube
Efficacy
160lm/w
Input Voltage
AC100-240V
Color Index
Ra>80
Power Factor
PF>0.95
CCT
2800~3300K,3800~4300K,5800~6400K
Lifespan
50,000hours
Warranty
5 years
Product Description

T5 Led Tube inner driver 1500mm 22W 110lm/w 130lm/w 160lm/w TUV CE 1149mm G5 base Features


♦ Crash test of aluminum housing accords with OSRAM standard

♦ Patent desigh for appearance, Unique housing design, excellence in heat dissipation, and anti-impact

♦ Easy to install, a perfect replacement for traditional lamps.

♦ Completely green& environmental protection, No hazards of mercury or lead, No UV and IR radiation

♦ Low power consumption, energy saving up to 82%, Optimized LED lighting beam angle

♦ Instant start, no fluorescent, flickering, no humming, free logo printing

Model
SL-DGA00-209WT-G5-T
SL-DGA00-418WT-G5-T
SL-DGA00-525WT-G5-T
LED Light Source
              SMD 2835
SMD 2835
SMD 2835
Bulb Watt
9W
18W
25W
Length
600mm
1200mm
1500mm
Installation Process

Other Main Products

Packing & Delivery

Packaging

Payment & Shipping


Ø Payment: T/T, Western Union L/C are acceptable.


Ø Delivery Time:3-5 days for samples, 10-15 days for large quantity.

Ø Shipping: By Express (DHL, UPS, etc.), By Air or By Sea.

Ø Port of loading: Shenzhen/Guangzhou.

Ø Discounts are offered base on the order quantity.

Applications

Can be used in :


1. Commercial Complexes and other Public facilities

2. Schools, Colleges, Universities

3. Places where need energy saving and high color rendering index lighting

4. High maintenance or temperature sensitive environments



Our clients: Sylvania SONY, EPSON, IKEA, and many retailers....

Our cases: Madrid Subway, PLA Airport, Daily Price Store.....

Certifications
Company Information

Strong lumen Opto.Co.Ltd

• Strong Lumen Opto Co.,Ltd. is Sino-foreign joint venture,started from 2002 and established in 2010, focusing on high-performance LED lighting products and now has become a leading LED Lihghting Fixture manufacturer in China. STRONGLUMEN now can produce more than1,000,000pcs LED tubes per year.


• STRONGLUMEN specializes in high quality LED Tube Lighting, especially high luminous T8&T5 LED tubes, also it has high quality Panel light, Ceiling light, Flood light, Spotlight, Bulbs, High bay light, Street light, Garden light, PAR light, PLC lights etc.

•STRONGLUMEN values very much the technology innovation , always does R&D independently and now is holding patens for its products.

• STRONGLUMEN, located in Shenzhen,Guangdong Province, China, with a high standard anti-dust factory with advanced production equipments, professional engineer tem.Quality control system is comtroled strictly service,customer-100%-satisfaction as our goal.

• STRONGLUMEN now is now holding VDE, UL/DLC,CUL, SAA and CE certifications for its high quality products which are sold though out the world ,such as USA, Europe, Australia, Asia and Middle East market.

More professional test equipments

>> Integrating sphere
>> Temperature and humidity chamber
>> High and low temperature test chamber
>> High voltage test instrument
>> IES Test room
>> Intelligent Tube aging line
>> EMI EMC Test Room

Our Trade Show

HKTDC Hong Kong International Lighting Fair 2017(Spring Edition)....

HKTDC Hong Kong International Lighting Fair 2016(Autumn Edition)
HKTDC Hong Kong International Lighting Fair 2016(Spring Edition)
HKTDC Hong Kong International Lighting Fair 2015(Autumn Edition)
HKTDC Hong Kong International Lighting Fair 2015(Spring Edition)
HKTDC Hong Kong International Lighting Fair 2014 (Spring Edition)
2013 GuangZhou Led Light Trade Fair etc.

FAQ

Q1: How to aging our products?

A: All led tube at least 24 hours before shipping.

Q2: What are our delivery time?

A:1) Sample order,3~7 working days

2) 500pcs,7~12 working days
3) 1,000pcs,10-15 working days
4) 1,000pcs,15-20 working days
5) 10,000pcs,20-25 working days

Q3: Terms of payment?

A:T/T in advance, Paypal,30% deposit,70% balance befor shipment

Q4: Will it be possible to print our logo?

A: Of course, Ourmost led tube is 180 degree Rotatable&Lockable end cap+Metal ring.

We could customized your laser print for free on Metal ring.
Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation.
if mockup is ok, finally we will go to mass production.

Q5:Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q6: How do you ship the goods and how long does it take arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years guarantee for the products.
