tube led lighting T5 led tubes SAA TUV CE VDE U L D-L-C approval

FOB Reference Price:Get Latest Price
$5.20 - $6.40 / Pieces | 5 Piece/Pieces (Min. Order)
Color:
Lamp Power(W):
12
Emitting Color:
Cold White Warm White White
Lead Time:
Quantity(Pieces) 1 - 25 >25
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty(Years):
5
Input Voltage(V):
AC100-240V
Lamp Luminous Efficiency(lm/w):
110
CRI (Ra>):
80
Working Temperature(℃):
-20 - 48
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum + plastic cover
IP Rating:
IP44
Certification:
CE, EMC, LVD, RoHS, SAA, VDE
Place of Origin:
Guangdong, China
Brand Name:
STRONG LUMEN
Model Number:
T5
Application:
office, Indoor Lighting
Light Source:
LED
LED Light Source:
SMD2835
Lamp Luminous Flux(lm):
1320
Color Temperature(CCT):
2700-6500K
Product Name:
T5 LED Tube Light
Length:
2/3/4/5/8ft
Power:
30/25/22/20/18/15/12/10/9W
Power Factor:
PF>0.95
CCT:
3000k/4000k/5000k/6000k
website:
www.stronglumen.com
Item Type:
Tube Lights
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
25PCS/CARTON, Canton Size and Gross Weight as below: (CM)
2 Feet: L61*W20*H20 5.3kg
3 Feet: L91*W20*H20 6.4kg
4 Feet: L121*W20*H20 8.7kg
5 Feet: L151*W20*H20 11.1kg
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 25 >25
Est. Time(days) 5 To be negotiated
Video Description

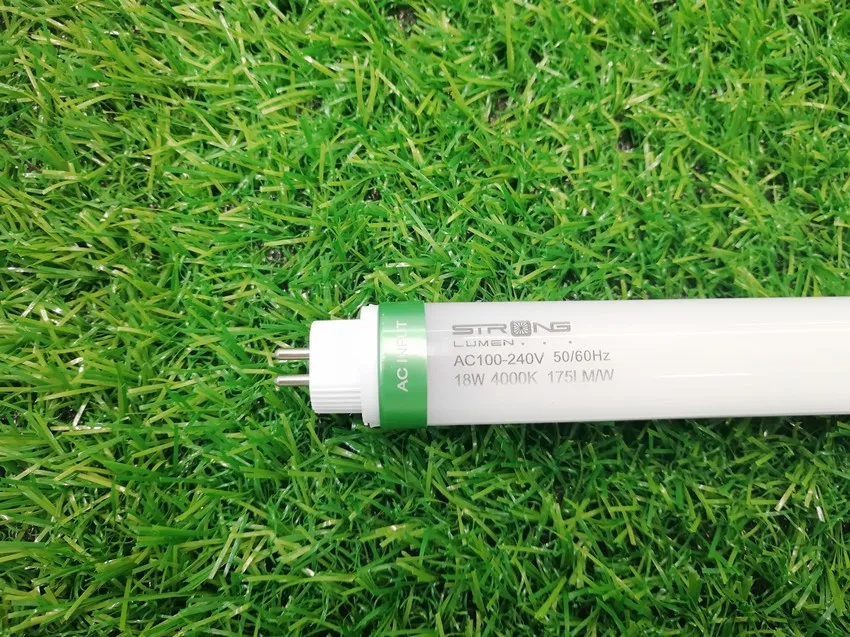

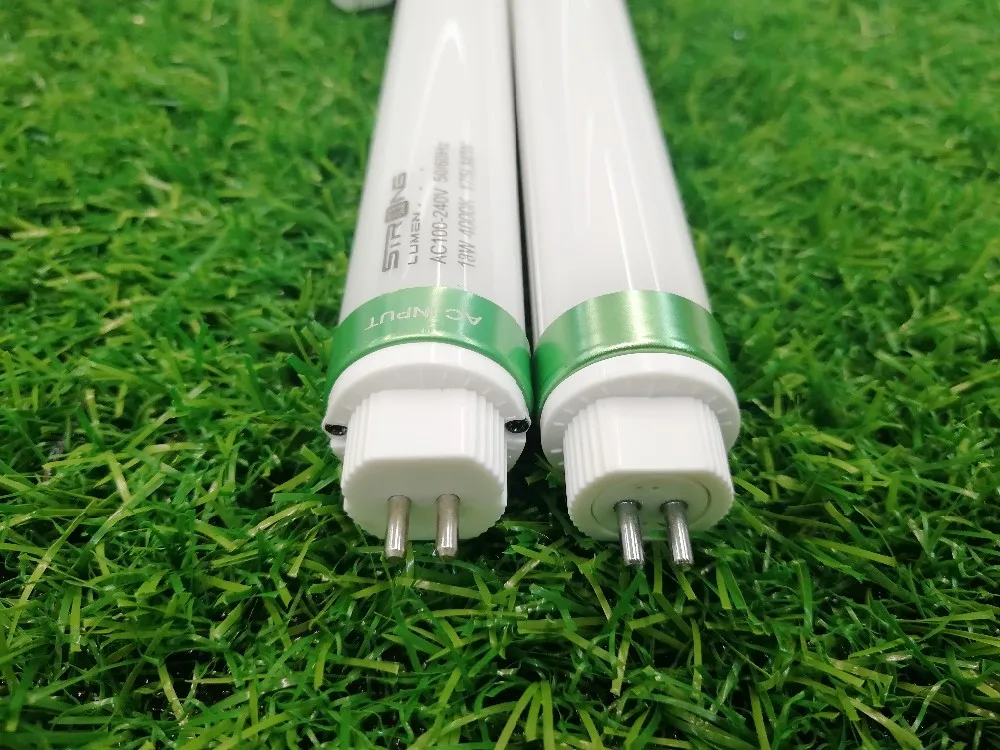

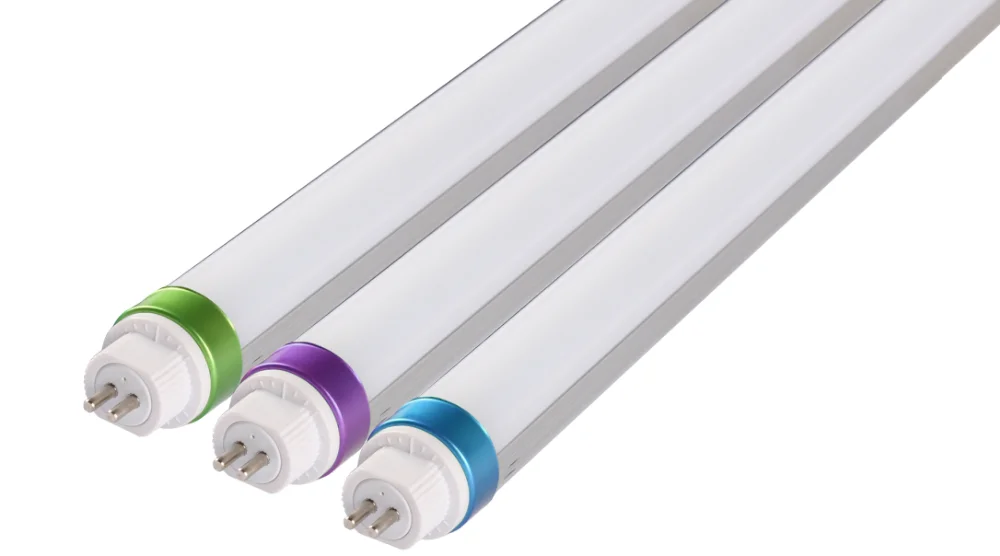

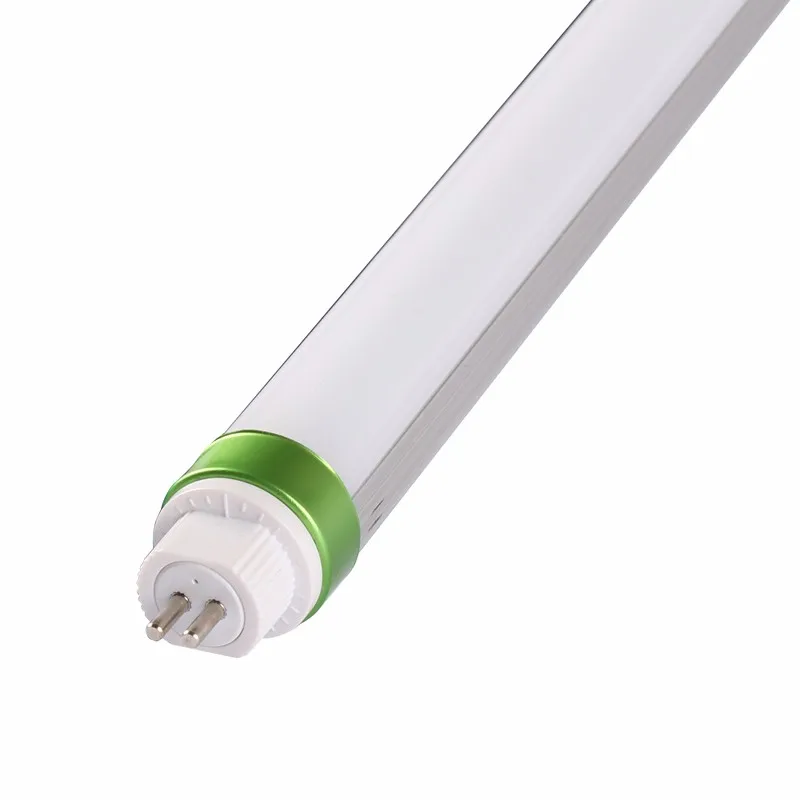

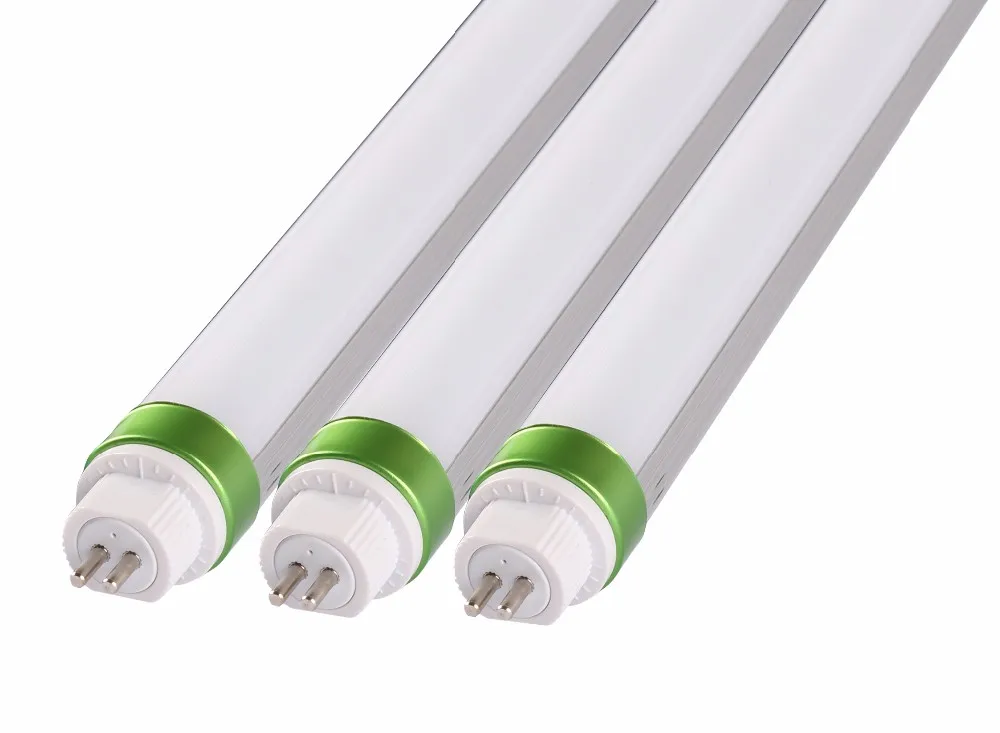

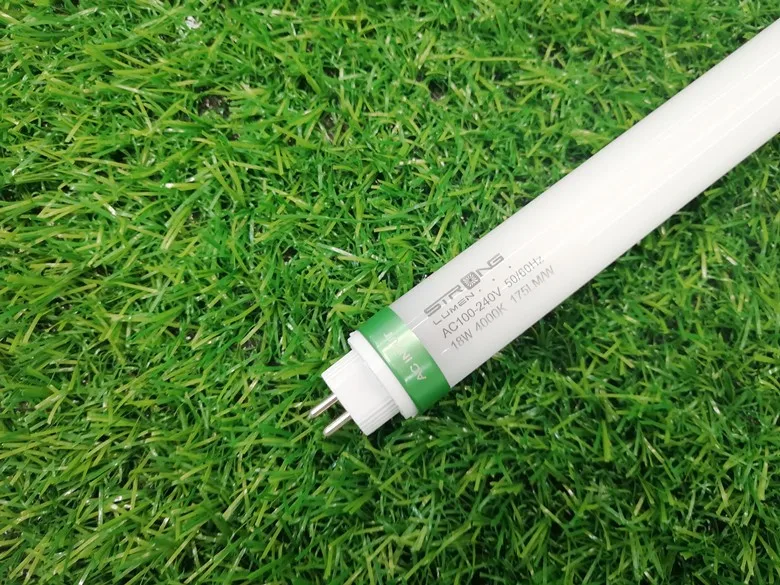

Detailed Images

tube led lighting T5 led tubes SAA TUV CE VDE approval fluorescent replacement

Product Description

tube led lighting T5 led tubes SAA TUV CE VDE approval fluorescent replacement

T5 LED Tube: 110-120lm/w high lumen

Cover: Frosted or Clear

Voltage: AC100-240V
Luminance Efficacy :110lm/w; Clear Cover:120lm/w

End cap: G5 + metal ring (rotatable end cap with lock available)
CCT: 5800-6400K,L:3800-4300K,N:2800-3300K
Material: Aluminum body+PC cover
Beam angle: 140 degree
Warranty: 5 years

Product Model:

Remarks:3000K, 4000K, 5000K available, only change "W" to "N", "L","C" in Model No.

Model No.
Length
Power
Lumen(lm)
LED Qty
SL-DGA00-209WT-G5-N
2ft
9W
990
72pcs
SL-DGA00-312WT-G5-N
3ft
12W
1320
96pcs
SL-DGA00-418WT-G5-N
4ft
18W
1980
144pcs
SL-DGA00-420WT-G5-N
4ft
20W
2200
144pcs
SL-DGA00-522WT-G5-N
5ft
22W
2420
168pcs
SL-DGA00-525WT-G5-N
5ft
25W
2750
168pcs
SL-DGA00-530WT-G5-N
5ft
30W
330
192pcs

Features:

1) Pretty and elegant appearance,patented product, excellence in heat dissipation.
2) Completely green& environmental protection, No hazards of mercury or lead, No UV and IR radiation.
3) High luminous intensity, low light degradation.
4) Low power consumption, energy saving up to 82%.
5) Optimized LED lighting beam angle,
lifespan (LED)>50000hrs

6) Instant start, no fluorescent, flickering, no humming.

7) Patent No:ZL201430013288.7

Draw of T5 LED tube:


2 feet
3 feet
4 feet
5 feet

548 Dimension
848 Dimension
1148 Dimension
1448 Dimension
A:
562
862
1162
1462
B:
548
848
1148
1448

Test Report:

Installation Guide

Single Ended Power Led Tube Installation:

Double Ended Power Led Tube Installation:

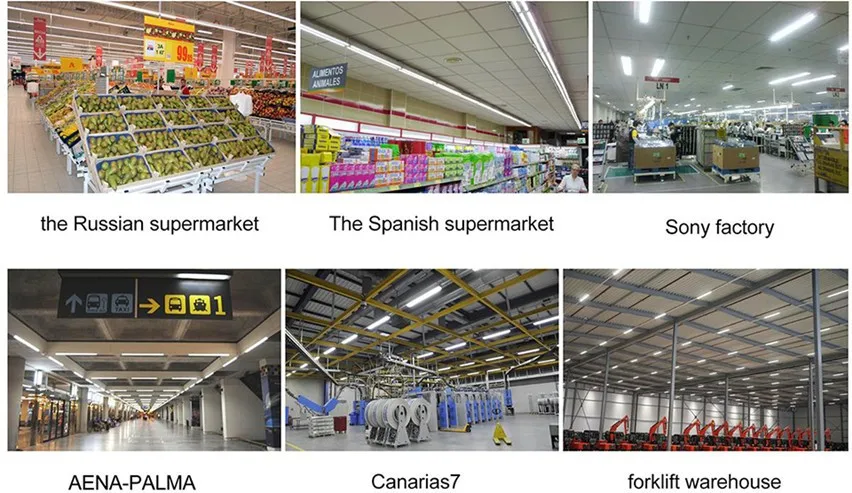

Product Application

A) Hotels/Supermarket
B) Conference / Meeting rooms
C) Factories & Offices
D) Commercial Complexes
E) Residential / Institution Buildings
F) Schools, Colleges & Universities
G) Hospitals
H) Places where need energy saving and high color rendering index lighting

Company Information

About StrongLumen

Founded :in 2008
Company area: 10000 M2
Total Staff: 150
Our Products: T10,8,5 LED Tube/ Electronic ballast compatible Tube/ LED high bay light/Linear light/Panel/PLC
Our Certificate: TUV,CE(EMC/LVD),VDE, SAA,Rohs
Our Client: Sylvania,Sony, Epson, IKEA,Madrid Subway, PLA Airport,Daily Price Store,Wholesaler,Retailers...

Factory Show

Our Certification

Trade Show

HKTDC Hong Kong International Lighting Fair 2017(Spring Edition)....
HKTDC Hong Kong International Lighting Fair 2016(Autumn Edition)
HKTDC Hong Kong International Lighting Fair 2015(Spring Edition)
HKTDC Hong Kong International Lighting Fair 2014 (Spring Edition)
2013 GuangZhou Led Light Trade Fair etc.

Why choose us ?

Quality

LED lighting quality is about componentary and assembly. We specify all of the major componentary within our products and we inspect quality control at the factories where they are assembled.

Variety

We offer more choices which means we can suggest a product that is best suited to the needs of your business. We offer fixed or rotating end caps which means the tube will always find.

Price

Our prices are reasonable. We have the flexibility, because of our range, to meet your pricing and quality objectives


FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3. Do you have any MOQ limit for led light order?

A: MOQ: 25PCS, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
