LED Linear Trunking System

FOB Reference Price:Get Latest Price
US $40-55 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Tube Lights
LED Light Source:
SMD2835
Warranty(Years):
5
Input Voltage(V):
AC100-240V
Lamp Power(W):
45
Lamp Luminous Flux(lm):
5400
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-20 - 48
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
C-tick, CE, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Stronglumen
Model Number:
linear light
Cover:
clear
Beam angle:
30° 60°90°120°
PF:
0.95
faction:
diammable
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Size:L1265*W75*H75
Carton:1265*W75*H75
4pcs/carton 9kg/carton
Port
Shenzhen Port
Lead Time :
2 days after receiving payment

LED Linear Trunking System



Linear Trunking System is an innovationaL LED light, it is environmentally-friendly, energy-saving, bright and it is economical but looks luxurious, widely used to replace traditional flood light, fluorescent lamp  in supermarket, mall, warehouse, office, hostpital, school etc.

Multi-angle 120Lm/w Led linear highbay light 1200m 45w linear Led lights

Product Description

linear light part1.jpgstronglumen Led lights.jpg



linear light part 13.jpg


Specifications

1. The main parts of Linear light are made of 6063 aviation aluminium, perfect in heat dispatching,lead-free, environmental, the light is bright but solft, no harm to humanbeings, the ligh has pass EMC, LVD ROSH lab tests and CE certification is avaible for it.
2. PMMA Lens: 30/60/90/120/Double 25°(left and right),asymmetric Left or Right.
3. LED chips: Epstar SMD2835,Philips SMD3030,Ra>80,Ra>90, 130 lm/w
4. Size: 0.6M/0.9M/1.2M/1.50.6M---28W(maximum) 0.9---40W(maximum) 1.2---50W(maximum) 1.5M---72W(maximum)
5.Driver: Phiplips X driver, Lifud driver(Isolated driver), 5 year warranty
6. Installation: Suspending/surface mounted
TypeLED linear light
Voltage100-240VAC
Chip type
SMD2835/Epistar
Driver branConstant current driver
Efficacy120lm/w
Color index>80
Power factorPF>0.95
CoverClear
Environment temp-20 ~ +48℃
ColorW:5800-6400K,  L:3800-4300K,  N:2800-3300K
Beam angle60° 90° 120°
Warranty

5 years



Features:

1. high energy efficiency light source.

2. Brand new DIY LED lights, dimming, internal external emergency are available.

3. Special circuit design, a part of light lit is optional.

4. The perfect heat dissipation and low temperature design.

5. Pretty and elegant appearance,show clients the state of the art Led.

6. It can be use for indoors and semi-outdoors like warehouse, swimming pool,supermarket.etc.

linear light part6.jpglinear light part7.jpg

 linear light5.jpg
Product model:
ModelColor TempPowerLumen(lm)LED QtySize(mm)Carton Size(cm)N/WGW/4PCS
SL-LLA-445L-5-090LL6000k45w5400132pcsL1265*W75*H75L1310*W90*H901.8kg8.8kg
SL-LLA-445L-5-090LL-D  4000k45w5400132pcsL1265*W75*H75L1310*W90*H901.8kg8.8kg
SL-LLA-450L-5-090LL-DL3000k50w6500132pcsL1265*W75*H75L1310*W90*H901.8kg8.8kg
SL-LLA-560L-5-090LL6000k60w7200165pcsL1565*W75*H75L1610*W90*H903.3kg14.5kg
SL-LLA-560L-5-090LL-D4000k60w7200165pcsL1565*W75*H75L1610*W90*H903.3kg14.5kg
SL-LLA-572L-5-090LL-DL6000k72w8640165PpcsL1565*W75*H75L1610*W90*H903.3kg14.5kg
Detailed parts:
Led linear lights details.png

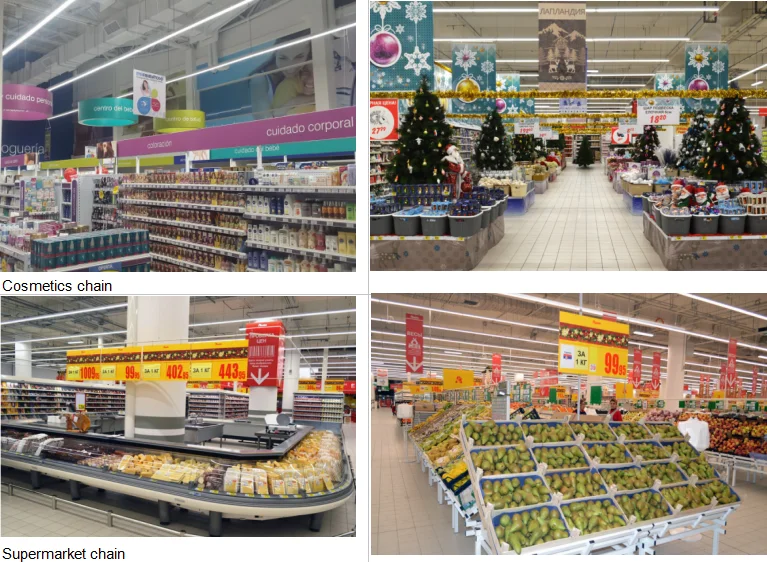

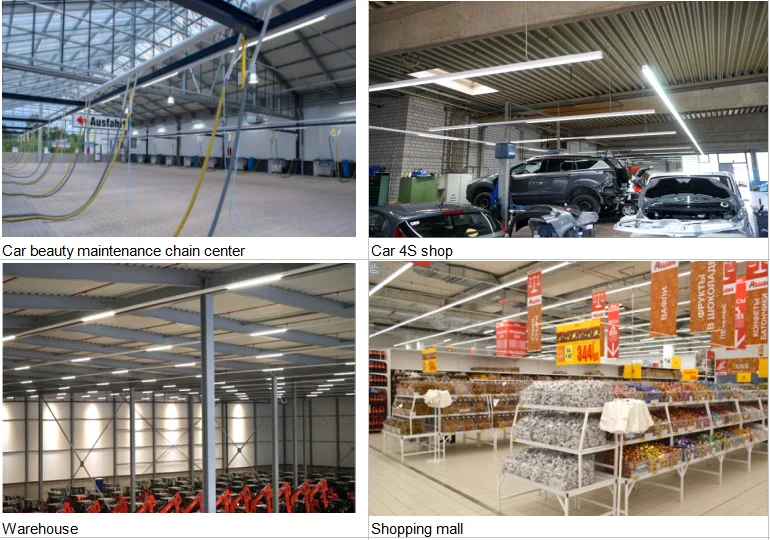

Application:
linear light application1.pnglinear light application.png
Company Information



stronglumen 1



Our Certificate




Our market

our products application case.png



Our Products:T10,8,5 LED Tube/ Electronic ballast compatible Tube/ LED Bulb/Linear light/PL/Candle/Highbay light.

Our Certificate: CE(EMC/LVD),Rohs, UL,DLC,CUL,VDE, SAA

Our Client: Sylvania,Sony, Epson, IKEA,Madrid Subway, PLA Airport,Daily Price Store,Wholesaler,Retailers...



Our exhibition

zhanhui

FAQ



Q1: How to aging our products?

All led tube at least 24 hours before shipping.

Q2: Terms of payment?

T/T in advance, Paypal,30% deposit,70% balance befor shipment

Q3: Will it be possible to print our logo?

Of course, Ourmost led  tube is 180 degree Rotatable&Lockable end cap+Metal ring.

We could customized your laser print for free on Metal ring.

Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation.

if mockup is ok, finally we will go to mass production.
 Q4:Can I have a sample order?
 Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

 Q5. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

 Q6. Do you offer guarantee for the products?
Yes, we offer 3 and 5 years guarantee for the products.
