TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver

FOB Reference Price:Get Latest Price
US $10-11 / Pieces | 25 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Tube Lights
LED Light Source:
SMD2835
Warranty(Years):
5
Input Voltage(V):
AC85-265V
Lamp Power(W):
25
Lamp Luminous Flux(lm):
3200~4800
Lamp Luminous Efficiency(lm/w):
160
CRI (Ra>):
80
Color Temperature(CCT):
cool white, pure white, warm white
Working Temperature(℃):
-25 - 48
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum body+PC cover
IP Rating:
IP20
Certification:
CE, EMC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
StrongLumen
Model Number:
T5
LED Quantity:
192 pcs
Power Factor:
>0.95
Beam Degree:
130 or 140
End Cap:
G5 rotatable with lock + metal ring
LED current:
40mA
Length:
600/900/1200mm/1500mm led tube T5
Cover:
Clear or Frosted
Manufacturer:
www.stronglumen.com
Warranty:
5 years
Application:
Indoor Lighting
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
25PCS/CARTONS, Unit Package Size and Gross Weight as below:
60cm: 61*20*20cm, 5.3kg 90cm: 91*20*20cm, 6.4kg
120cm: 121*20*20cm, 8.7kg 150cm: 151*20*20cm, 11.1kg
Port
Shenzhen
Lead Time :
3~7 days
Video Description
Product Description

Specification of high lumen 160lm/w t5 tube led lighting:

 TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver

TypeT5 LED Tube
Weight<200g
Voltage100-240VAC/100-277VAC
Chip typeSMD2835
EfficacyFrosted Cover:160lm/w; Clear Cover:170lm/w
Color index>80
Power factor>0.9
CoverFrosted or Clear
End capG5 Rotatable end cap+Green ring
ColorW:5800-6400K,L:3800-4300K,N:2800-3300K
MaterialAluminum body+PC Lens
LED current40mA
Beam angle140 degree
Warranty3/5 years


Product Model of T5 tube led lighting:


 TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver

Model No.Length Color TempPowerLumen(lm)LED Qty
SL-DGA00-209WT-G5-T2ft6000K9W144072pcs
SL-DGA00-312WT-G5-T3ft6000K12W192096pcs
SL-DGA00-412WT-G5-T4ft6000K12W1920144pcs
SL-DGA00-418WT-G5-T4ft6000K18W2880144pcs
SL-DGA00-520WT-G5-T5ft6000K20W3200192pcs
SL-DGA00-525WT-G5-T5ft6000K25W4000192pcs
SL-DGA00-530WT-G5-T5ft6000K30W4650216pcs


Remarks:3000K, 4000K, 5000K available, only change "W" to "N", "L","C" in Model No.



Show of 160lm/w t5 tube led lighting with inner driver:

 TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver

led lighting.jpg







high lumen 160lm/w t5 led lighting Features:

 TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver
OEM is available and no extra charge for logo printing(>1000pcs).
A) Pretty and elegant appearance,patented product.
B) Unique housing design, excellence in heat dissipation, and anti-impact.
C) Completely green& environmental protection, No hazards of mercury or lead, No UV and IR radiation.
D) High luminous intensity, low light degradation.
E) Low power consumption, energy saving up to 82%.
F) Optimized LED lighting beam angle.
G) 6063 Aluminum shell,Japan PC cover,long lifespan.
H) >50000hrs lifespan (LED), 10 times more than traditional Lamps.
I) Instant start, no fluorescent, flickering, no humming.
J) Efficiency: 110~175LM/W(milky cover);120~180LM/W(clear cover)
K) Warranty: 5 years

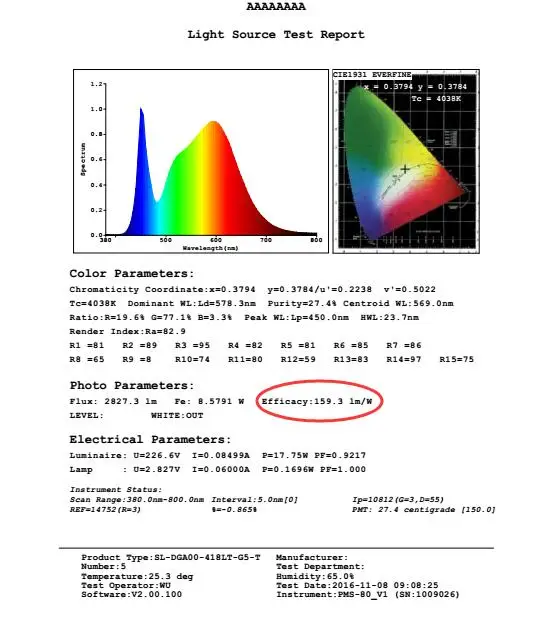

Test report:
TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver
led lighting.jpg
Draw of T5 LED TUBE

TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver

 2 feet3 feet4 feet5 feet
 548 Dimension848 Dimension1148 Dimension1448 Dimension
A:56286211621462
B:548848+11481448

led lighting.png

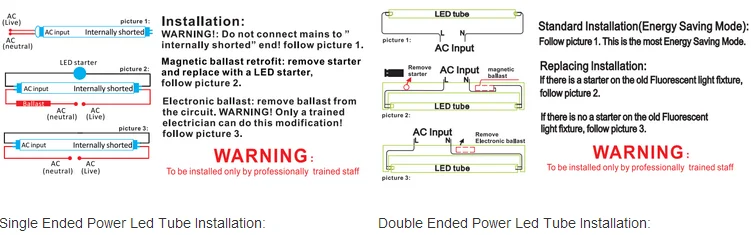

Installation Guide

 TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver



Product Application

 TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver

A) Hotels
B) Conference / Meeting rooms
C) Factories & Offices
D) Commercial Complexes
E) Residential / Institution Buildings
F) Schools, Colleges & Universities
G) Hospitals
H) Places where need energy saving and high color rendering index lighting



OUR CASES:

led lighting.jpg

Packaging & Shipping
 TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver
25PCS/CARTONS, Unit Package Size and Gross Weight as below:
60cm: 61*20*20cm, 5.3kg±0.5                90cm: 91*20*20cm, 6.4kg±0.5
120cm: 121*20*20cm, 8.7kg±0.5           150cm: 151*20*20cm, 11.1kg±0.5

) Foam Package

led lighting.jpg



(2)Roll Paper Carton Package

led lighting.jpg

Trade term:

 TUV CE T5 led tube 1500mm T5 tube led lighting with G5 rotating end cap internal driver

1.

Payment:Paypal,  T/T, Western Union L/C are acceptable.

2.

Delivery Time:3-5 days for samples, 10-15 days for large quantity.

3.

Shipping: By Express (DHL, UPS, etc.), By Air or By Sea.

4.

OEM is welcome.

5.

Port of loading: Shenzhen/Guangzhou.

6.

Discounts are offered base on the order quantity.

Company Information

About StrongLumen

Founded :in 2008

Company area: 10,000 sq meters

Total Staff: 150

Our Products: T10,8,5 LED Tube/ Electronic ballast compatible Tube/ LED high bay light/Linear light/Panel/PLC

Our Certificate: TUV,CE(EMC/LVD),Rohs, VDE, SAA

Our Client: Sylvania,Sony, Epson, IKEA,Madrid Subway, PLA Airport,Daily Price Store,Wholesaler,Retailers...



Factory Show





led lighting.png
led lighting.png



Our cetificates

 .jpg



Trade show



Strong Lumen Customers Distribution Map:

 led lighting.jpg





R&D Team

6 R&D engineers with more than average 8 years R&D working experiences in LED industry. Furthermore, CEO Mr. Jack is our chief product designer, who have been in led industry for 10 years with unique design idea and great knowledge on product and market demand.
With the support of our professional R&D team, our products have passed TUV,VDE, SAA and CE. Our main customer from Europe, Australia, Asia and Middle East.



Quality Control

A) Comply to 5S management.( SEIRI, SEITON, SEISOU, SEIKETSU, SHITSUKE)
B) Strictly inspection for incoming material and standard warehouse management.
C) 100% aging test for at least 24 hours before delivery.



After Sale Service

When things do not work as expected, pls kindly contact our sales.
We will respond to you within 24 hours upon receiving your complaint in our working days (Monday to Friday), and It will help us to get quick response to your complaint if you indicate details of your complaint with pictures.
Any loss caused by StrongLumen, we'll bear the responsibility and give best solution ASAP.



Our Services

Before sale Service
1. Your inquiry of our products will be reply in 24 hours.
2. We will provide you with newest quotation and the specific product specifications.
3. Good quality product, quick delivery time, competitive price, strong packing.
4. Free design packaging and laser marking.
5. We offer OEM services. Can print your logo on product, can customize the packing and other things.
6. Our engineers have R&D experiences and have strong ability to do ODM projects.
7. Every products will be checked well in order to ensure the high quality.
8. Provide detailed products test report.
After Sale service
1. When things do not work as expected, pls kindly contact our sales.
2. We will respond to you within 24 hours upon receiving your complaint in our working days (Monday to Friday), and It will help us to get quick response to your complaint if you indicate details of your complaint with pictures.
3. Any loss caused by StrongLumen, we'll bear the responsibility and give best solution ASAP.
